a gallery of dromed errors

LarryG on 23/9/2009 at 20:03

Odd, yes. I also save cow files and not mis. So who knows? No harm seems to come from it though.

Dront on 26/9/2009 at 16:41

I changed a model of a merchant (DromEd 1) to Farkus (expfraka) and decided to give him a hammer as a weapon. Set AI propeties, hammer propeties, etc... At last selected Renderer -> Mesh Attach property to attach the hammer to my "engineer"'s hand. It was a bug, I guess - the window showed that there were already (!) 4 objects attached to him, they had huge numbers, attached to unknown numbers of joints, with offsets in format like 0.7e+7... Despite this, I changed the 1st object's parameters to mine. And when I went to game mode and tried to look at that fellow, Dromed told me:
(http://img180.imageshack.us/i/error1z.jpg/)

Inline Image:

http://img180.imageshack.us/img180/456/error1z.th.jpg
Strange that when I re-opened Dromed and loaded my save file (I saved just before giving Mesh Attach property), the window was clear - all zeros.
Magic? Or this is one more clue that I've been Dromeding too much?

Later. One more error with this very "engineer".
(http://img17.imageshack.us/i/error4o.jpg/)

Inline Image:

http://img17.imageshack.us/img17/4207/error4o.th.jpg
It occured when he noticed me and tried to attack. I don't understand what exact submodel Dromed means...
Guess that's enough Dromeding for today. :)

LarryG on 29/10/2009 at 02:20

This one has popped up twice today when complete processing. but back to back complete processing does not get it a second time. Any idea how to find the bad vertex and discipline it? ... LATER: Found it, I think. Some bad boy had zero dimensions. Naughty!

sterlino on 2/11/2009 at 10:47

dunno exactly why.. but this 3ad irritate me a lot... :rolleyes::p

R Soul on 2/11/2009 at 14:56

What's a 3ad?

LarryG on 2/11/2009 at 15:44

Puzzled me too. But I think it may be an abbreviation for thread. three-ad. 3ad.

sterlino on 2/11/2009 at 15:44

Quote Posted by R Soul

What's a 3ad?

hehe.. i am pretty sure you know it..

btw i would meant that: to see all those errors popups in a single one time make me feel nervous just like when i work on dromed for real.
;):cheeky:

darthsLair on 2/11/2009 at 18:07

Inline Image:

http://i1005.photobucket.com/albums/af173/darthslair/looking.jpg

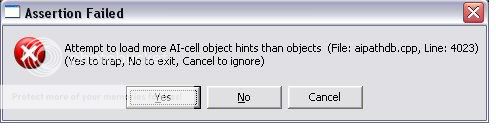

This is with Dromed 1.37 Thief Gold

You can view the AiPathCells, and AiPathLinks here:(http://www.ttlg.com/forums/showthread.php?p=1923807#post1923807) http://www.ttlg.com/forums/showthread.php?p=1923807#post1923807

I am currently trying to resolve this problem by changing some of the Terrain to create solid lines in the pathcell links. I am no expert by no means, and if any of you Veteran Dromeders can help to analyze the Cell Paths, and make some suggestions other that what I am trying to do, please leave your post in that thread. A process of elimination has already been attempted, and although the mission file will open in darkloader 4.3, I would prefer to eliminate this error in Dromed 1.37

LarryG on 8/11/2009 at 19:27

Anyone know anything about this one?

Here is a bit of the dump:

Quote:

[dynarray.h@379] Index 11 out of range
[dynarray.h@379] Index 12 out of range
[dynarray.h@400] Index 53389540 out of range
Fatal exception occured; dumping crash info to log...

------------------------------------------------------------------------------

DromEd caused an Access Violation in module DromEd.exe at 0023:00612b18.
Exception handler called in _AppMain(): x:\prj\tech\libsrc\appcore\appcore.cpp.
Error occurred at 11/8/2009 11:29:40.
F:\Program Files (x86)\Thief2 - DromEd\DromEd.exe, run by LarryG.
4 processor(s), type 586.
0 MBytes physical memory.
Read from location 3be68e74 caused an access violation.

Registers:
EAX=3be68e74 CS=0023 EIP=00612b18 EFLGS=00010206
EBX=00000000 SS=002b ESP=000bfd30 EBP=08b90614
ECX=000bfd50 DS=002b ESI=3be68e74 FS=0053
EDX=000bfd50 ES=002b EDI=00000001 GS=002b
Bytes at CS:EIP:
d9 00 d8 01 d9 18 d9 41 04 d8 40 04 d9 58 04 d9
Stack dump:
000bfd30: 004b71a8 3be68e74 000bfd50 00000080 035eb648 00000008 00000020 00000000
000bfd50: 00000000 00000000 00000000 00483e82 00000080 035eb648 00000008 00000020
000bfd70: 0065c7bb 0328ae8c 00000080 0328192c 03296dbc 0328191c 00001000 0328192c
000bfd90: 00000000 00000008 0000000b 00000001 00000000 0328ae8c 00000000 00000000
000bfdb0: 00000000 00000001 00000000 00000013 00000000 0065a321 035eb794 00000080
000bfdd0: 0328192c 0000002c 00000001 0328191c 000bfe68 00000001 006b10a8 007cc720
000bfdf0: 03296dbc 006dd210 03282fdc 006197f8 006b10a8 00000000 007cc720 00000000
000bfe10: 00000000 00000000 00000000 00000000 00000080 006ac17a 00000080 03289cf4
000bfe30: 000bfe80 0061ad91 00000001 000bfe80 00000001 00000000 7efde000 00000001
000bfe50: 000bfe40 000bf920 000bff78 0069d6d8 006d8e50 00000000 000bff88 00699abf
000bfe70: 00000001 000bfe80 00000000 00000000 00ae939c 00000000 006af029 00000690
000bfe90: 00000194 006acac2 00000000 006ace83 00a40900 032968d0 00ae90cc 00000000
000bfeb0: 00803504 7efde000 00000000 7efde000 006929b0 000bfed0 0069faa8 00ae9480
000bfed0: 000bff88 0069b7db 0000000d 0069a098 00000000 00000000 7efde000 006929aa
000bfef0: 006929b0 006a658b 00000065 000bff88 0069c9ac 00400000 00000000 011b2de3
000bff10: 0000000a 00000000 00000000 7efde000 00000000 011b2de3 00000000 00000044
000bff30: 011b4428 011b8320 011b8348 00000000 00000000 00000000 00000000 00000000
000bff50: 00000000 00000000 00000000 0000000a 00000000 ffffffff ffffffff ffffffff
000bff70: 000bff14 00000000 000bffc4 0069d6d8 006dd260 00000000 000bff94 766deccb
000bff90: 7efde000 000bffd4 770cd24d 7efde000 795f7364 00000000 00000000 7efde000
000bffb0: 00000000 00000000 00000000 000bffa0 00000000 ffffffff 77102c41 0e530138
000bffd0: 00000000 000bffec 770cd45f 0069c8cc 7efde000 00000000 00000000 00000000
000bfff0: 00000000 0069c8cc 7efde000 00000000

According to (http://whoopdedo.org/cgi-bin/dromed.pl) the crash dump tool, this is the code in the area that caused the crash:

Quote:

00612a90 _mx_zero_vec
00612aa0 _mx_unit_vec
00612ac0 _mx_copy_vec
00612ae0 _mx_add_vec
>00612b10 _mx_addeq_vec
00612b40 _mx_sub_vec
00612b70 _mx_subeq_vec
00612ba0 _mx_scale_vec
00612bd0 _mx_scaleeq_vec

Nameless Voice on 9/11/2009 at 00:34

I didn't know he ever made that crash dump tool public. :o
