Nielsen74 on 20/3/2006 at 10:06

---

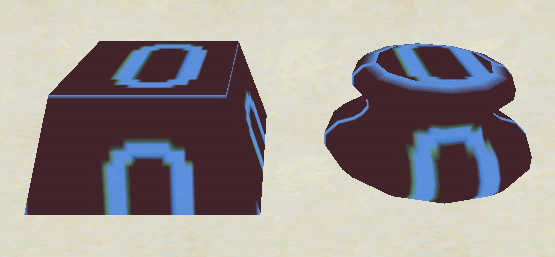

Her´s some Top and buttom pices for the columns
http://i3.photobucket.com/albums/y96/Nielsen74/TopButtomPices.gif
Again if any one want´s to use any of my object´s, just PM or Email me :D

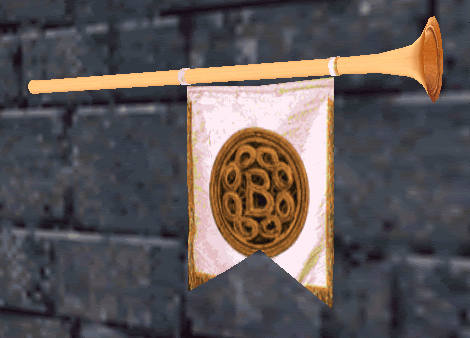

Now who whant´s to play a trune or to
http://i3.photobucket.com/albums/y96/Nielsen74/Trompet.gif
The banner can be any texture as it´s the replace0 texture that´s on it (this on is obj\txt\banner10)

Nielsen74 on 21/3/2006 at 07:57

---

Hey mr_luc there is no need to quote the pic´s or double posting that´s what the Edit botton up in the right croner of your post is there for.
I´l Email you thouse end pices :D

EDIT: Please delete the quotede pic´s from your earlier post´s ;)

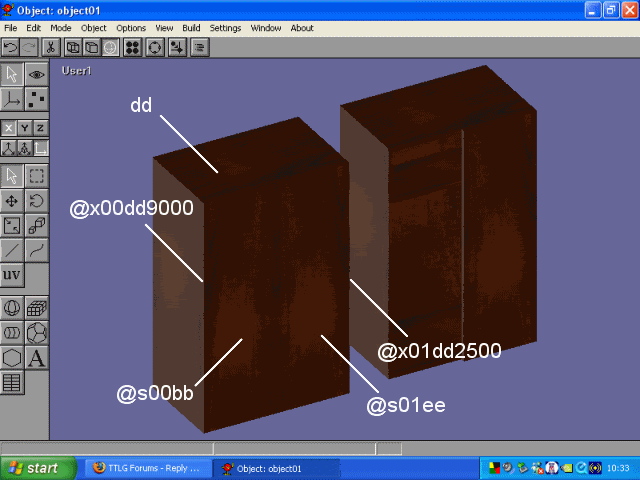

No another matter. I´m trying to make a closet with a door that rotates (oppen/closes), but when i try to convert it with 3ds2bin i get this error:

What dos that mean :confused:

Schwaa2 on 26/3/2006 at 17:28

---

Good luck sluggs, and if you find a way let me know.

I've made quite a few multi door/drawer models for Cosas and could find only 2 ways to make them function.

Your choice of door/drawer that opens on frob (one desk in room a can have a drawer #1 open, the same desk in another room can have drawer #2 open).
Which is still cool and better than original objects.

Or you can have all drawers/doors open continually. Player walks in the room and all drawers are opening closing by themselves. Great for a haunted situation, but lame otherwise. To do that you set the Tweq to continue.
Now I didn't mess with it at the time, but there might be a fairly complicated way to get it to work.

Have the obj frobable,
Have a Metaprop for Tweq continue.
When the cab is frobbed (StdButton) that metaprop gets added (probably need a Conv)
Time how long it takes for the doors to open, remove Metaprop Continue after that amount of time, adjust door speed to fine tune.
Now when the cab is frobbed again Conv is played again, adding Tweq continue for the specified time and removing it when they close.
You'll probably want to remove engine feature>frob info in world from the cab and add a metaprop called FrobInWorld. Now when the Conv starts you can remove FrobInWorld so the player can't double frob the cab, since it is the conv button. Then when the Conv is over the last step would be to add FrobInWorld again so the player can close it, or open it.

So the same conv should work for open and close, unless you get the speed of the doors perfect they could 'shift' position over multiple frobs.
Like if the door doesn't close completely and the player frobs it 10 times, it might actually end up ajar.

Any Conv would be

Remove meta
FrobinWorld

Add
Tweq Continue

wait
100 (?)

remove meta
tweq continue

add
FrobinWorld
---------
Or get someone to write a script?

----------
Nielson74,

Looks like you're missing a VHOT to hold the handle on.

@x00aa0030

you can also change all axle names to 0000
@x00aa0000. That'll help keep the errors to a min.

I could look at your obj but I can't think of what that error means.

Double check your names with my vhot/axle tut at LPG

R Soul on 26/3/2006 at 18:07

---

It's quite possible to do it. Look at how the VicLightSwitch is set up.

Tweq > Joints:
Halt: StopTweq
AnimC: Sim (I'm not sure if this is needed, but the VLS uses it)
Primary Joint: 2

Set the rate-low-high values for the doors (5;0;90 may be good settings).

Joint1AnimC: Sim
Joint2AnimC: Sim

S > Scripts:
DoubleButton (also, make sure it's not inheriting any other scripts that may interfere)

Engine Features > FrobInfo:
WorldAction: Script

Schwaa2 on 26/3/2006 at 22:53

---

doubleButton huh? Never thought to try that, I'll have to test it with objs with more than 2 doors. I'm guessing only doors 1 and 2 will open.

Maybe we need a triple, quadruple and quintuple Button script
---------------------
OK, I'm really stoked to see more than one joint open at a time, but I have 2 probs now, which I think could be handled by script:

1: If a cabinet has two opening doors AND you want to lock it DoubleButton script WON'T work. This is because the object actually has to have 3 joints. Joint #1 is for the lock (whether or not it have a moving handle, the joint has to be there for Tweq lock properties to work-Now it could be opened with a stimulus on a key, but not with lockpicks). Joints #2 and #3 are the doors.

2:If a cab has 4 doors (just tested this out) only 2 of them can be opened at any one time.
Door #1 (on joint #1) and any other door. But there's a problem with this...
Joint #1 is default, and the DoubleButton script must call on it specifically.
The other joint can be chosen by the Tweq Joints, primary joint setting. If 2 is the primary joint then both doors will open/close on frob.

If on the other hand joint 3 or 4 (or 5 for that matter) are the primary joint, when frobbed joint one will open along with the primary joint (say 3 for example). The problem arises when the cab is frobbed again, joint one will close, but any joint above 2 will not close again.

So if joint one is the lock, and it is locked, lockpickable. Joints 2 and 3 are doors. Either door will open or close fine (I'm sure joint one moves too-I use and invisible joint and sub-obj) whether or not you use the DoubleButton script. But only one per set-up (one per desk, desk a can have joint 2 work, desk b can have joint 3 work)
If you want 2 doors to open/close you cannot lock the object as far as I can tell, unless maybe you use a key and act/react.

So maybe a few scripts can be easily written by modifing the Double Button script to a Triple Button, where joints 1,2 and 3 are used. Another where joints 1,2,3 and 4 are used.
